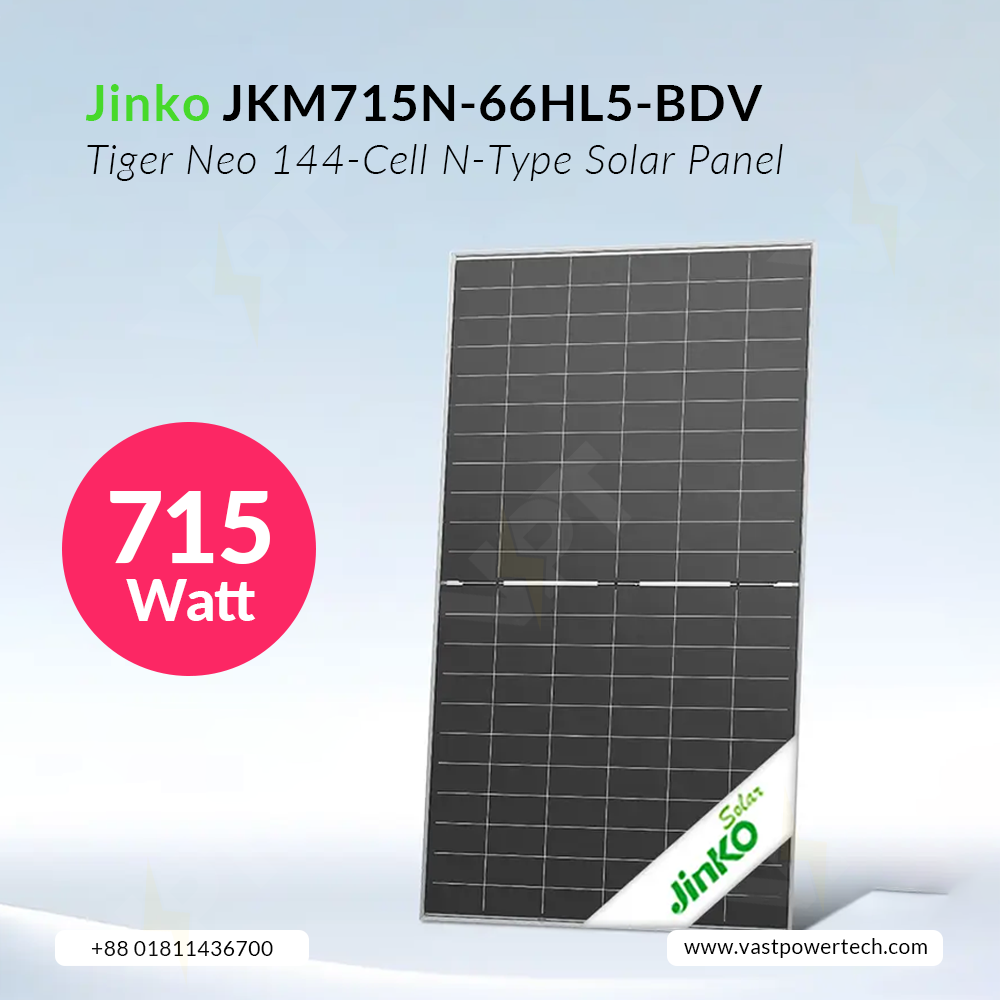

Premium Jinko Tiger Neo 144-Cell N-Type Solar Panel – Model JKM715N-66HL5-BDV

The Jinko Tiger Neo JKM715N-66HL5-BDV is a premium 144-cell N-Type monocrystalline solar panel delivering high-efficiency performance and superior energy yield. Designed for residential, commercial, and utility-scale installations, this panel ensures long-term reliability, low degradation, and excellent low-light performance, making it an ideal choice for modern solar systems.

Detailed Technical Specifications :

General Information:

• Brand: Jinko Solar
• Model: JKM715N-66HL5-BDV
• Series: Tiger Neo
• Cell Type: N-Type Monocrystalline
• Number of Cells: 144

Electrical Specifications (STC):

• Maximum Power (Pmax): 715 W
• Module Efficiency: ~22%
• Open Circuit Voltage (Voc): 49.9 V
• Short Circuit Current (Isc): 15.2 A
• Maximum Power Voltage (Vmp): 41.5 V
• Maximum Power Current (Imp): 17.2 A

Performance at NOCT (Nominal Operating Cell Temperature):

• Pmax: 534 W
• Vmp: 39.1 V
• Imp: 13.7 A

Mechanical Specifications:

• Dimensions: 2384 × 1303 × 35 mm
• Weight: ~35 kg
• Front Glass: 3.2 mm tempered, anti-reflective, high-transparency
• Frame: Anodized aluminum alloy for durability
• Junction Box: IP68 rated with 3 bypass diodes

Operating Conditions:

• Temperature Coefficient (Pmax): -0.35%/°C
• Maximum System Voltage: 1500 V
• Operating Temperature: -40°C to +85°C
• Warranty: 12-year product warranty, 25-year linear performance warranty

Certifications:

• IEC 61215, IEC 61730
• UL 61730
• ISO 9001, ISO 14001

Why Choose Jinko Tiger Neo 144-Cell Solar Panels?

• Higher energy yield with advanced N-Type cells
• Low LID and PID degradation for long-term reliability
• Excellent low-light performance for overcast conditions
• Robust and durable design for harsh weather and extreme temperatures
